| # | Component | W × D × H (cm) | Weight (kg) |
|---|---|---|---|
| 01 | Aluminium 140*75 Beams for 3.6*3.0A FS Pergola (Grey) | 366 × 28 × 18 | 33.0 |
| 02 | 11 Aluminium 173*30 Louvres for 3.0 Pergola (Grey) | 299 × 38 × 19 | 54.0 |
| 03 | 4 Square Aluminium 111*111 Legs & Fixing Pack 23A (Grey) | 280 × 26 × 24 | 43.0 |
| 04 | 12 Aluminium 173*30 Louvres for 3.0 Pergola (Grey) | 299 × 40 × 19 | 60.0 |
Dimensions are individual carton sizes. Useful for planning delivery access — narrow doorways, stairwells, or lifts.

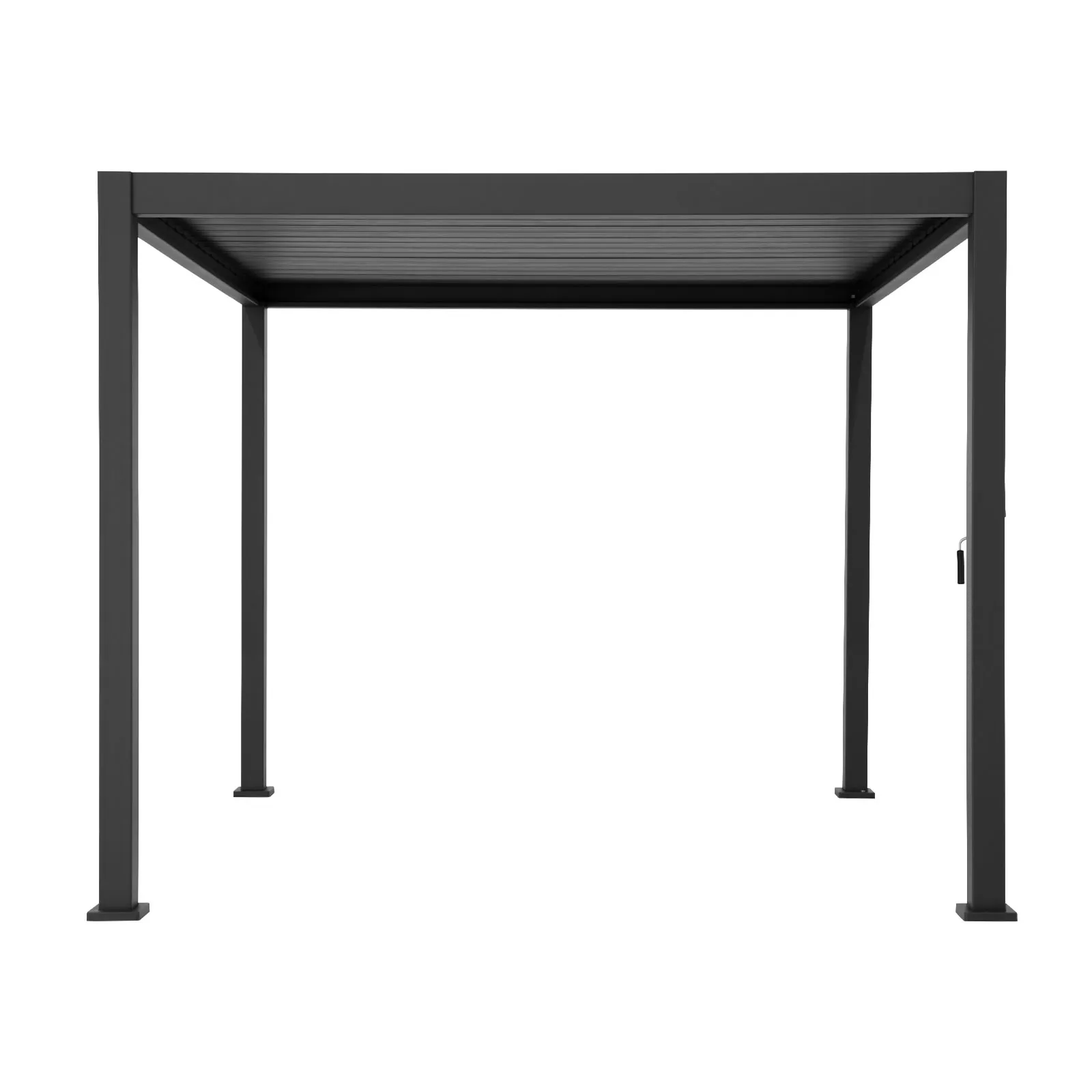

Nova - Titan Freestanding Aluminium Pergola - 3.6m x 3m Rectangular - Grey
The Nova Titan 3.6m x 3m Rectangular Aluminium Pergola in Grey is the perfect outdoor shelter for your garden or patio space. This pergola design has been awarded the Red Dot design award, and it is clear to see why.
Made entirely from aluminium, the pergola is 100% weatherproof and extremely durable. It is UV protected and resistant to fading or other damage caused by heat, protecting you and your loved ones from harmful UV rays when seated beneath it. This no-fuss, no-maintenance design means you never need to treat or care for it in the way you would with a wooden structure.
The pergola is finished with a TIGER Drylac powder coating, which offers improved protection over a standard powder coating, making the finish more durable and resistant to flaking. The RAL colour code is 7015, making it straightforward to match with existing aluminium garden furniture.

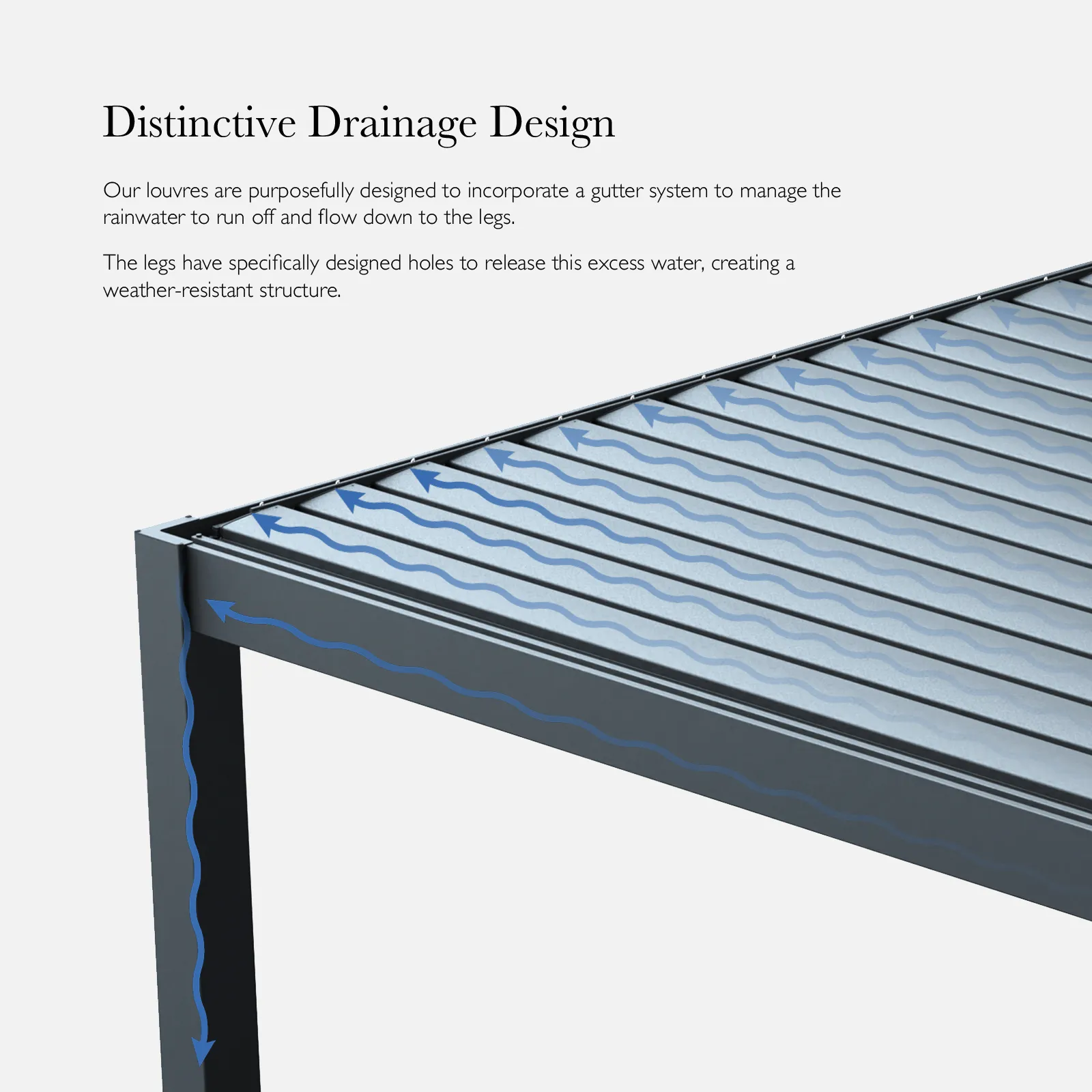

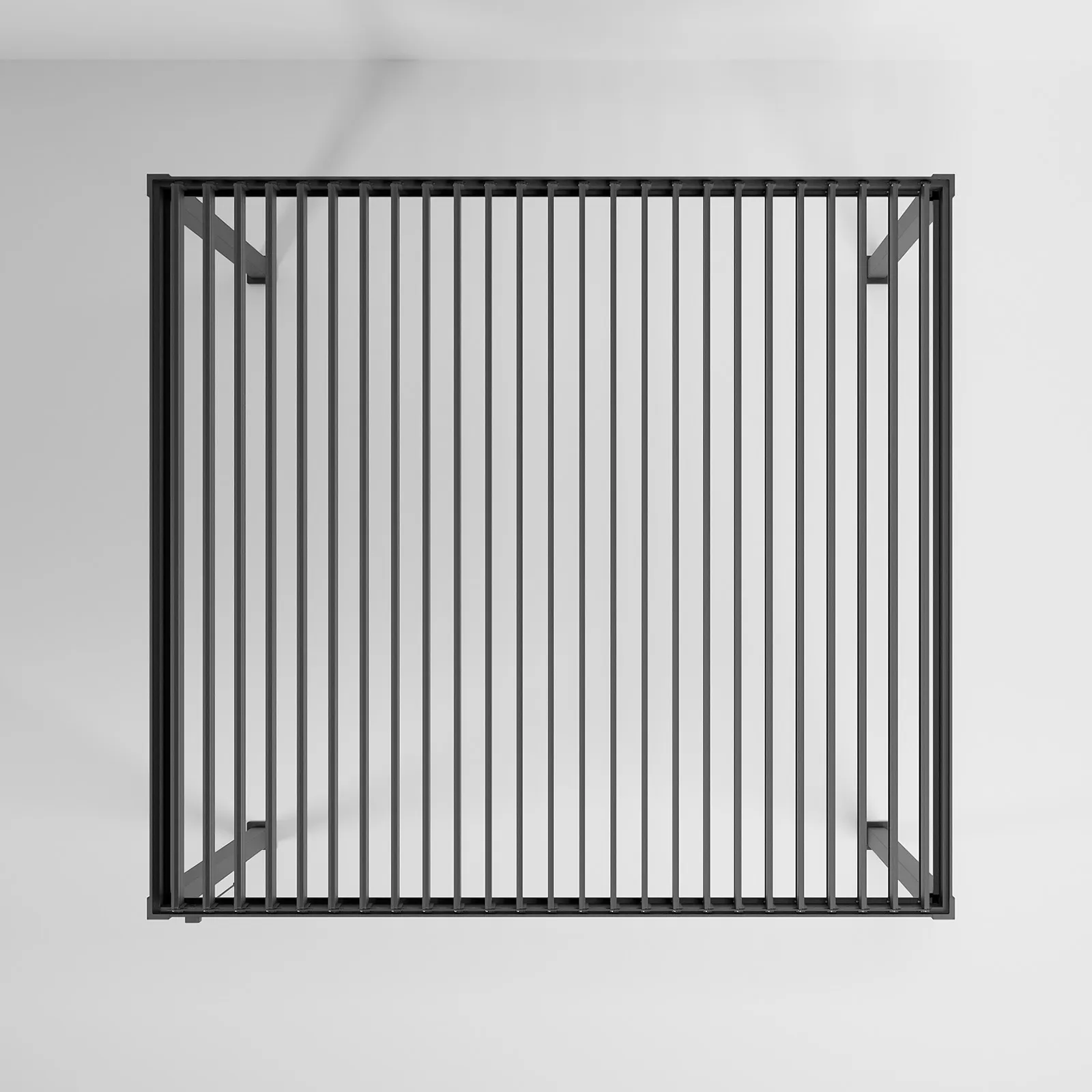

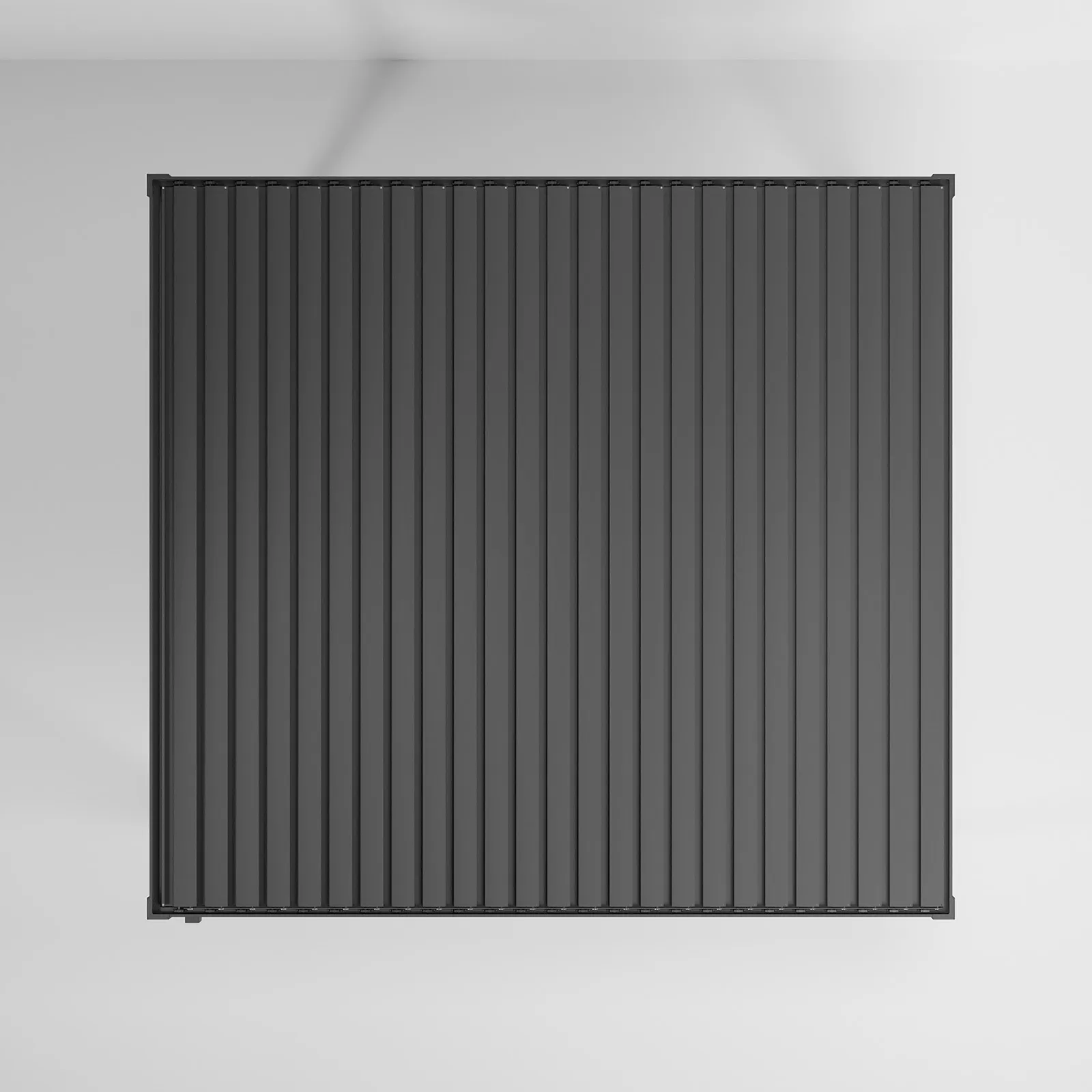

The tilting double-layer louvres allow you to fully open the roof to let in sunshine, or close them to create a sheltered space when the weather turns — ideal for use with garden furniture or a hot tub even in the rain. A built-in drainage system channels rainwater down through the legs of the pergola, preventing pooling on top of the louvres.
Assembly requires 2 to 3 people and takes approximately 2 hours. Expansion bolts are supplied for securing the pergola to the ground, and it is recommended that the structure is mounted on a flat, solid, hard surface such as concrete.
