| # | Component | W × D × H (cm) | Weight (kg) |
|---|---|---|---|
| 01 | 12 Aluminium 173*30 Louvres for 3.6 Pergola (Grey) | 360 × 40 × 19 | 73.0 |
| 02 | 11 Aluminium 173*30 Louvres for 3.6 Pergola (Grey) | 360 × 38 × 19 | 65.0 |
| 03 | Aluminium 140*75 Beams for 3.6*3.6A FS Pergola (Grey) | 366 × 28 × 17 | 36.0 |
| 04 | 4 Square Aluminium 111*111 Legs & Fixing Pack 23A (Grey) | 280 × 26 × 24 | 43.0 |
Dimensions are individual carton sizes. Useful for planning delivery access — narrow doorways, stairwells, or lifts.

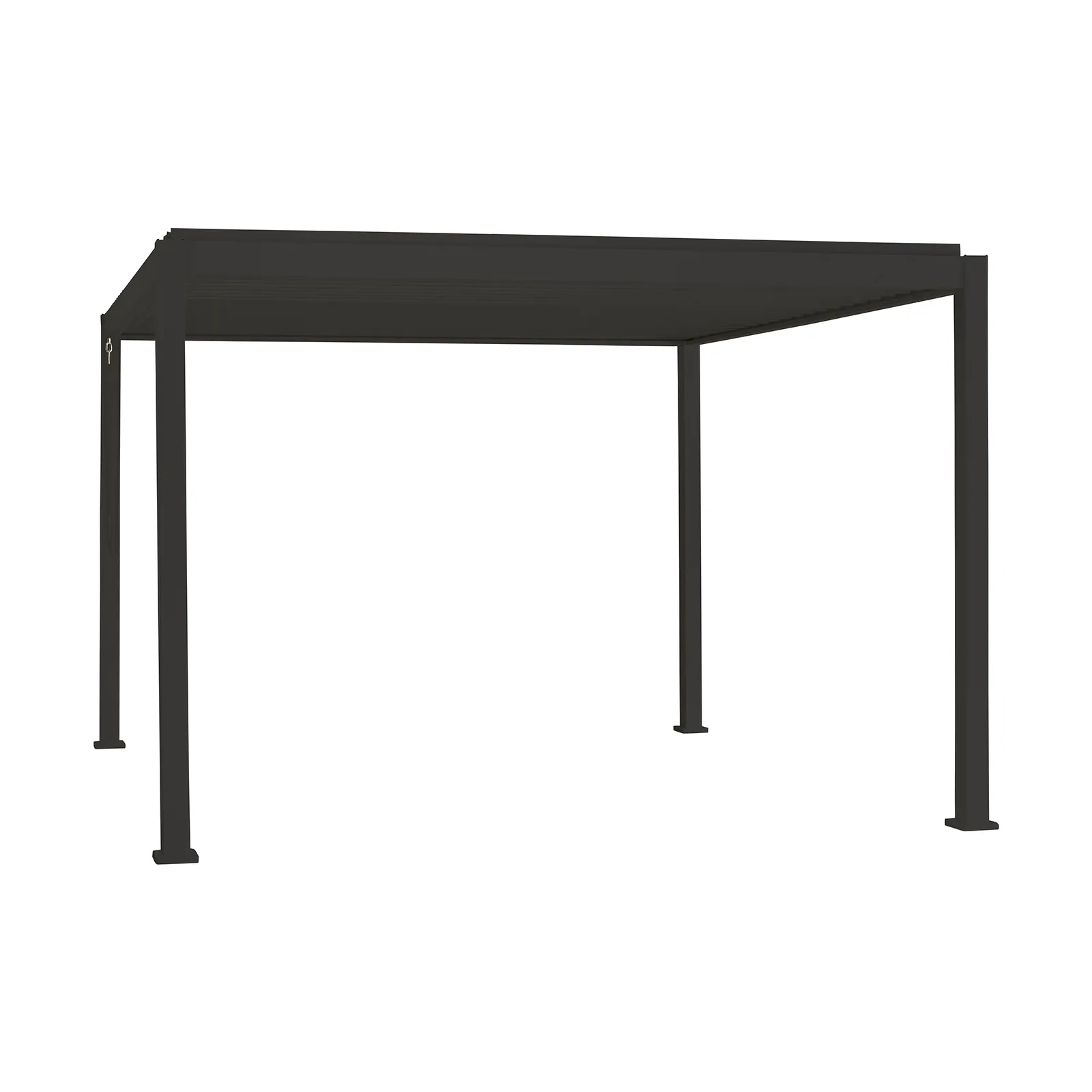

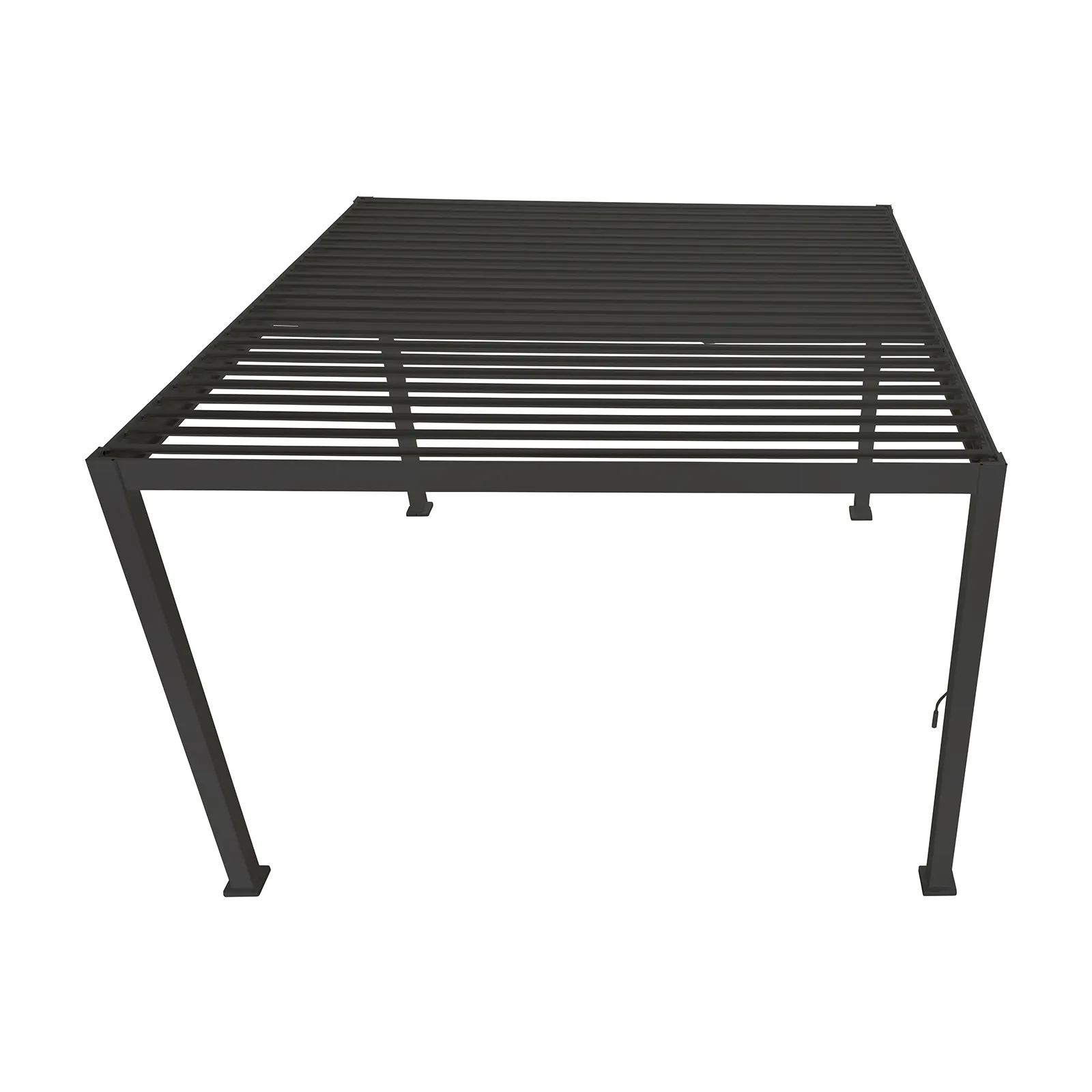

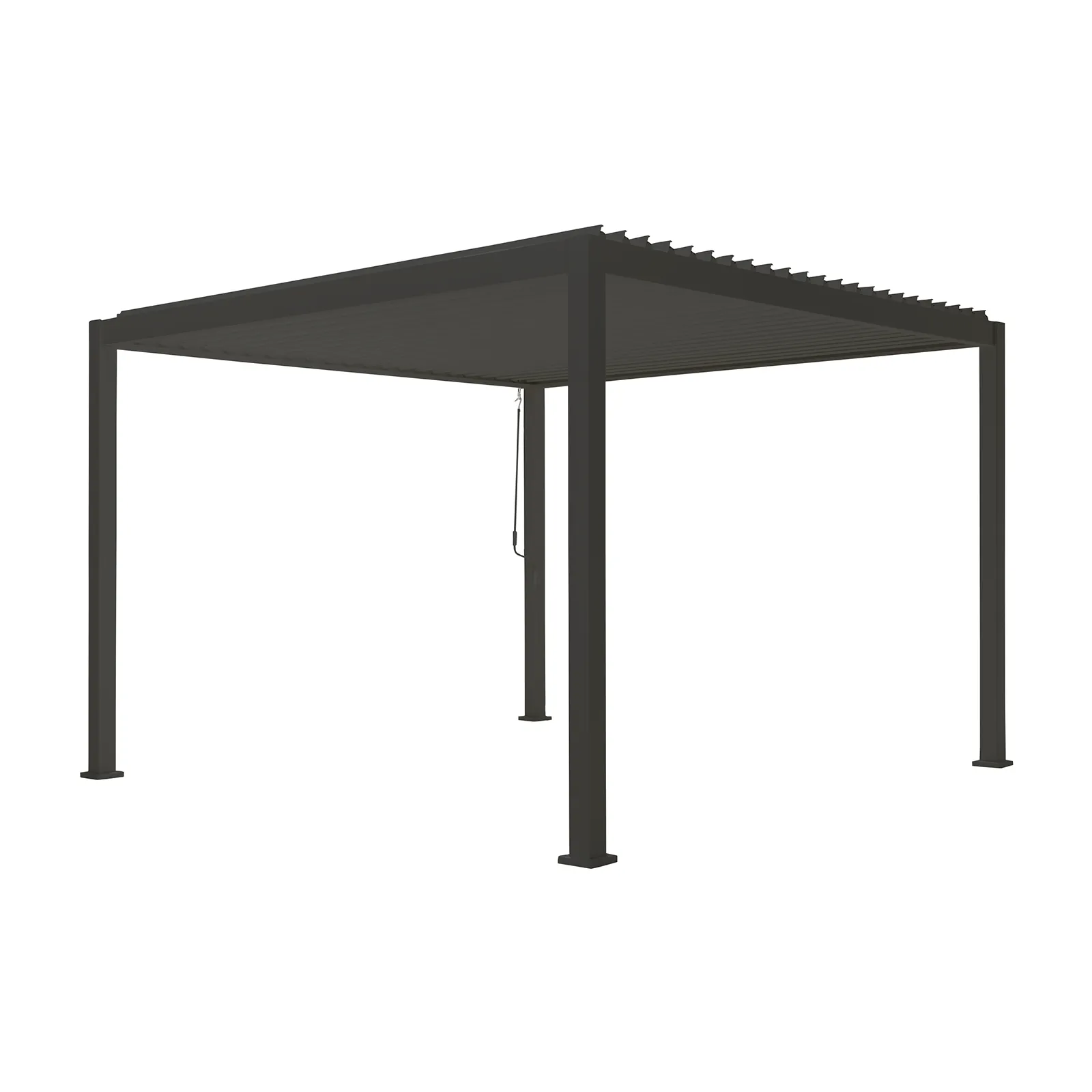

Nova - Titan Freestanding Aluminium Pergola - 3.6m Square - Grey

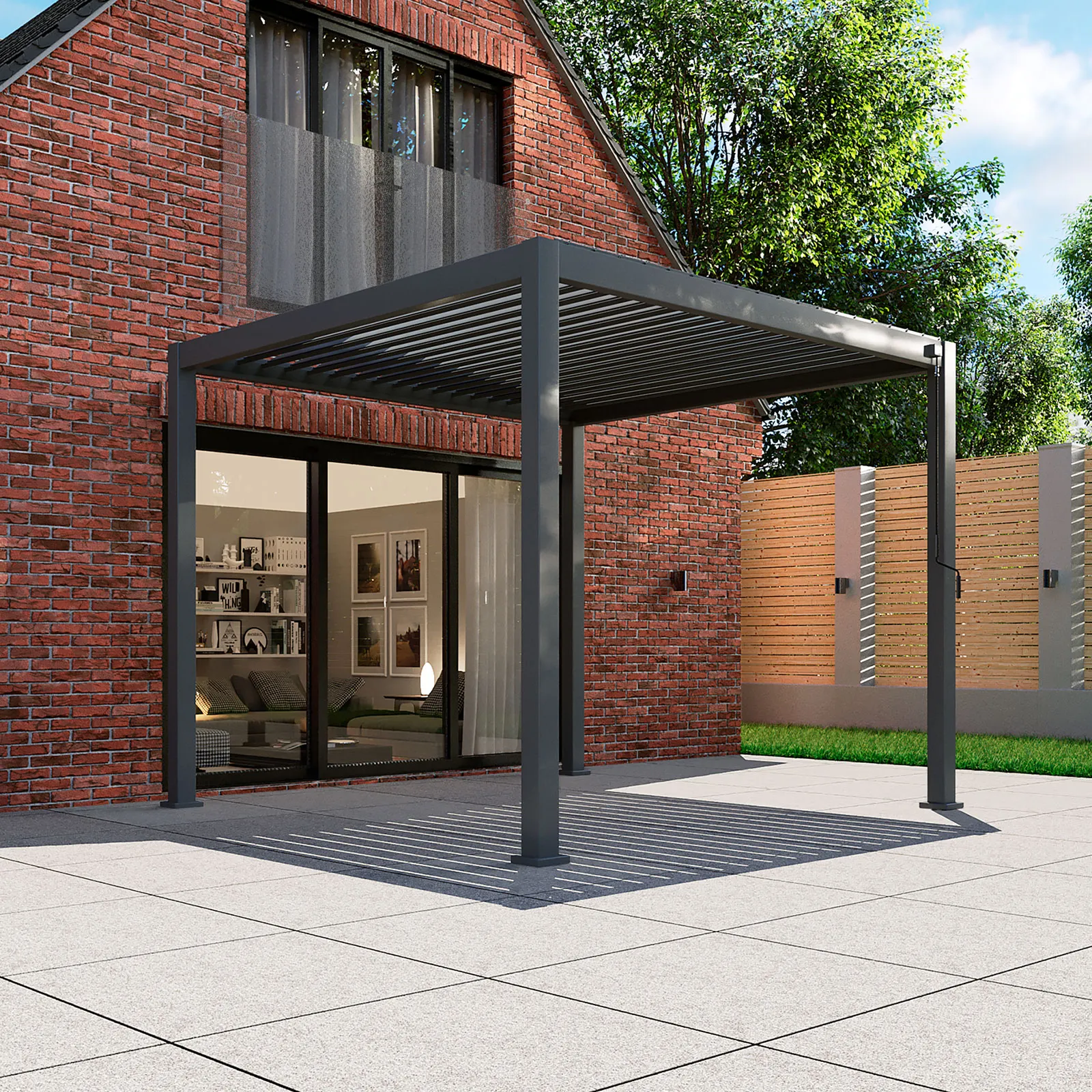

The Nova Titan 3.6m Square Aluminium Pergola in Grey is an award-winning outdoor shelter designed for gardens and patio spaces. This pergola has received the prestigious Red Dot design award, and it is easy to see why — it combines striking aesthetics with exceptional practicality.
Constructed entirely from aluminium, the pergola is 100% weatherproof and extremely durable. It is UV protected and resistant to fading or damage caused by heat, providing effective protection from harmful UV rays. Unlike timber alternatives, this no-fuss design requires no ongoing maintenance to keep it looking its best.
The finish is applied using TIGER Drylac powder coating, which offers improved protection over standard powder coating, resulting in a more durable, non-flaking surface. The colour can be matched to existing aluminium garden furniture using RAL colour code 7015.

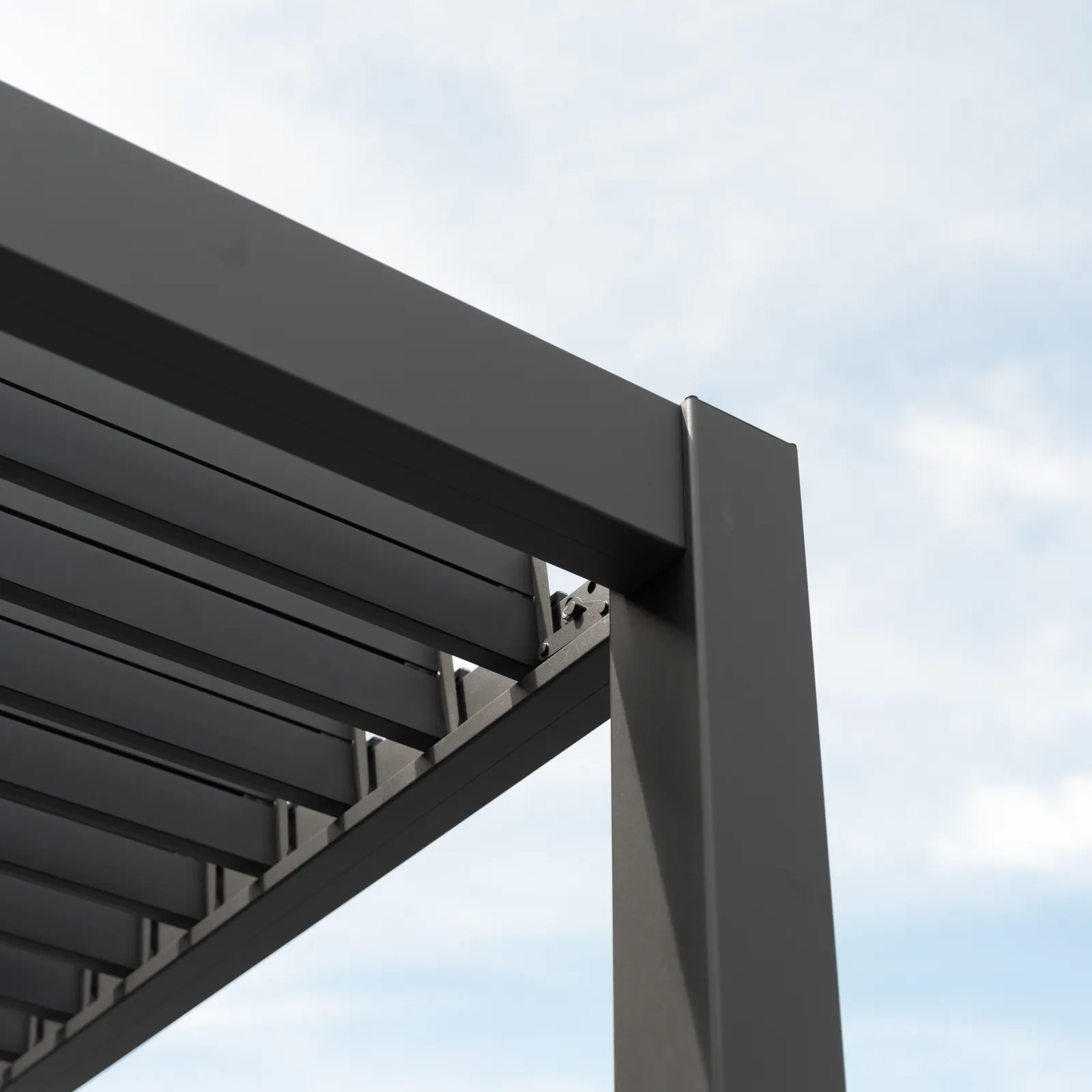

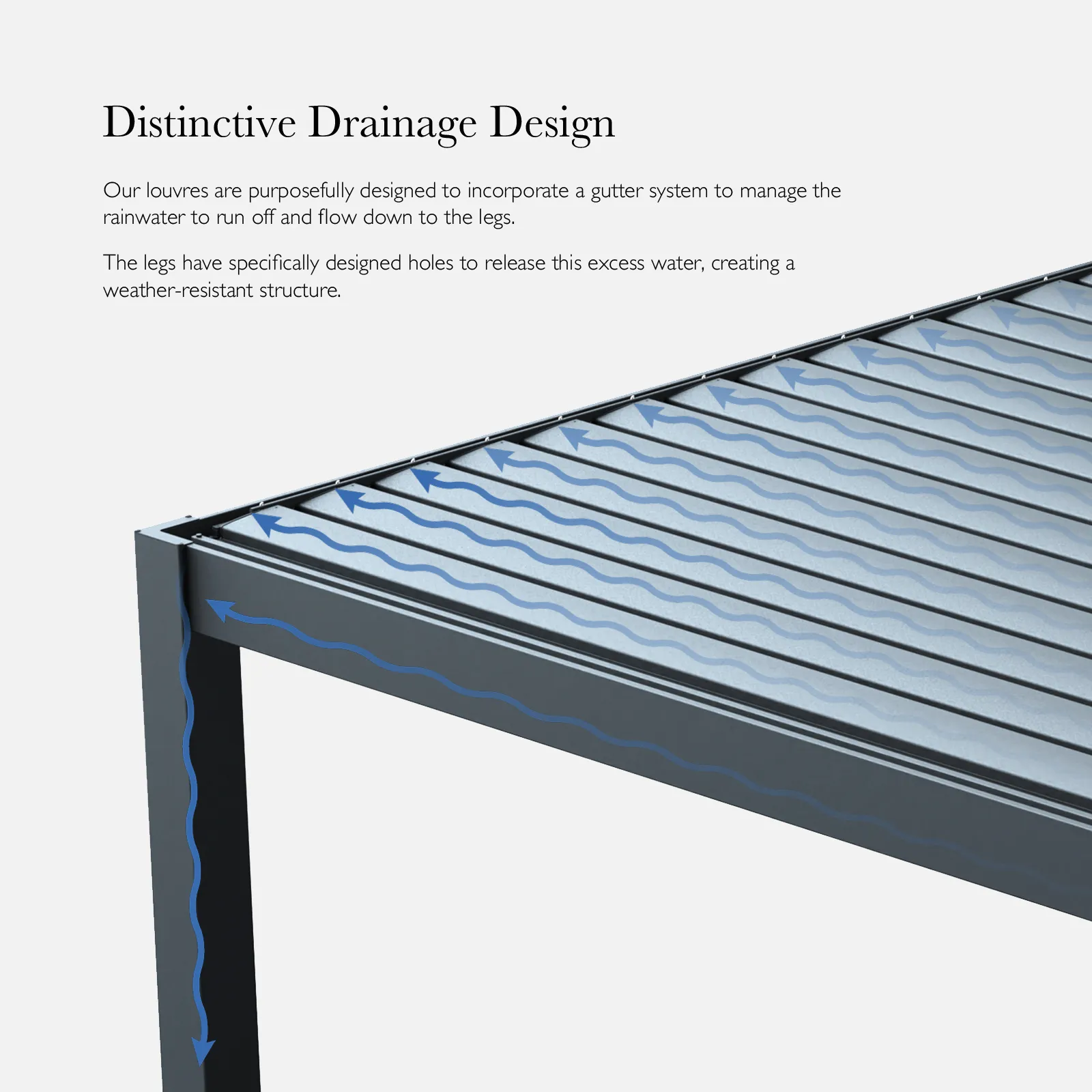

The tilting double-layer louvres allow you to fully open the roof to enjoy sunshine, or close them to create a sheltered, rain-proof space beneath — ideal for making the most of garden furniture or a hot tub throughout the outdoor season. A built-in drainage system channels rainwater down the legs of the pergola, preventing water from pooling on top of the louvres.
Assembly requires two to three people and takes approximately two hours. Expansion bolts are supplied for securing the pergola to the ground, and installation on a flat, solid, hard surface such as concrete is recommended.
Manuals & guides
1 document
